Capacitor CCG81

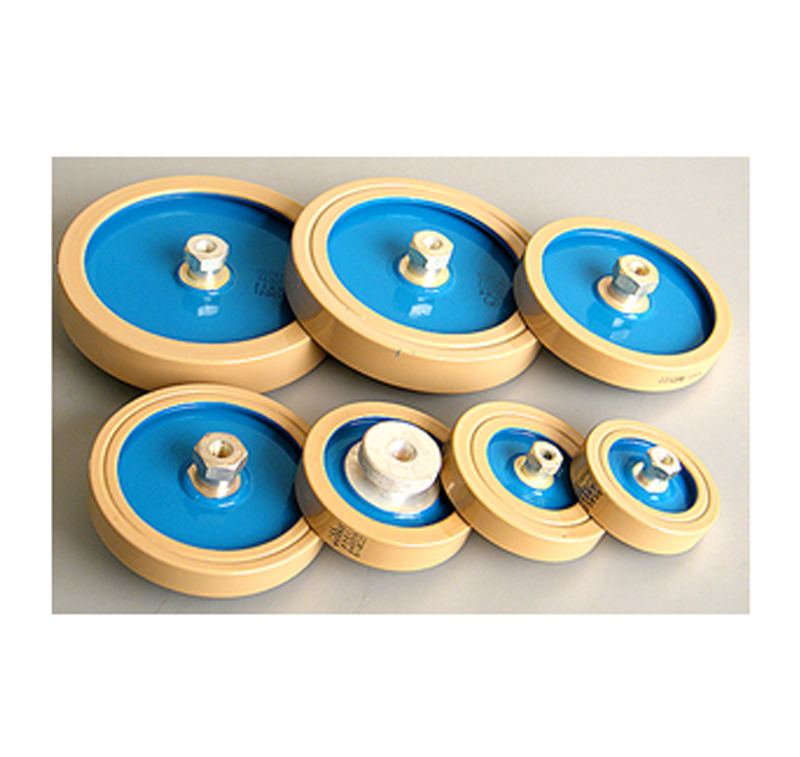

CCG81 high power ceramic capacitor

The technology of the capacitors is so mature. The quality is so steady and reliable.
They have the characteristic of high voltage withstanding, low dielectric loss, high reactive power, good HF function, long life and easily installing.
The capacitors are mainly used in the machines of HF welding, HF dry, HF furnace, plastic welder and radio communication equipments, etc.

Overview

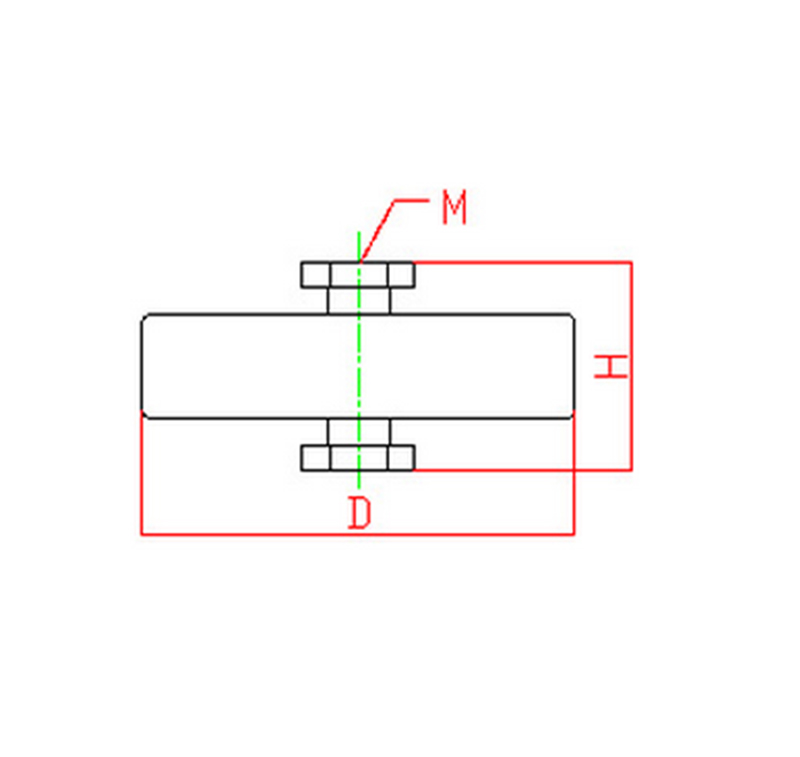

Model	Nominal power capacity	Rated voltage(KV)		Reactive power	Current Maximum	Dimension(mm)			Temperature coefficient
	(PF)	DC	HF(RMS)	(KVA)	(A)	D	H	Copper Nut	(PPM/ ℃ )
CCG81-0	100	5	4	30	15	35	21	M6	-750
	150
	200					40
	300					45
		8	5	40		46
	330	5	4			48
		8	5			50
	350	8	5			51
CCG81-1	100	15	12	60	20	58	37	M6
	150					60
	200						36
	250						35
	300	10	8				34
		12	10				35
		15	13			65
	350	10	8			60	34
		12	10			62
	500	10	8				33
	600					64
CCG81-2	500	12	10	65	25	70	34	M6
	750	10	8				33
CCG81-3	300	12	10	75	30	78	36	M6
		15	12				37
	350	12	10			80	36
		15	12				37
	500	10	8				34
		13	10				35
		15	12			82	36
	1000	8	5			82	33
		10	8			85
		13	10			88	34
CCG81-4	300	20	15	90	30	110	50	M8
		25	20				51
		30	25			113
	500	14	11			100	49
		15	12			110	47
		20	15				48
	600	14	11			100	48
	1000	10	8				45
		12	10			110
		15	12
	1500	10	8				44
	1600	11	8			102	43
CCG81-5	300	30	25	90	40	125	52	M8
	500	20	15			120	50
		25	20			125	51
	1000	15	12			120	46
	1500	10	8				44
		12	10				45
		15	12			122
CCG81-6	300	30	25	90	60	138	52	M8
	500	25	20			140
		30	25
	1000	15	12	125			48
		21	15				49
	1500	15	12				46
	1600	14	10
	2000	12					45
		13				142
	3000	12				145	44
CCG81-7	500	30	25	125	60	150	52	M8
	1000	25	20				50
	1500	21	15				47
	2000	15	12				46
	2200						45
	2500	10	8
		12	10			152
CCG81-8	1000	30	25	125	60	158	51	M8
	1500	25	20				48
	2000	21	15				47
	2500	12	10				45
CCG81-9	1000	30	25	150	60	200	55	M10
	1500
	1600
	2000	15	12				45
		20	15
	2500	15	12
		20	15
	3000	15	12
	4000	13	10
	5000
	6000	12	10			205
