Capacitor CCG61
High power ceramic capacitor technical parameters:
1.Typical dissipation factor: ≤0.0008；
2.Volume resistivity: ≥10000MΩ；
3. Permissible variation of rated capacitance: K（+/-10%）；
4.Temperature range: -40/+85；
5. Rated temperature: +85℃；
6. Maximum relative humidity: 75%;
7. Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV.

Overview

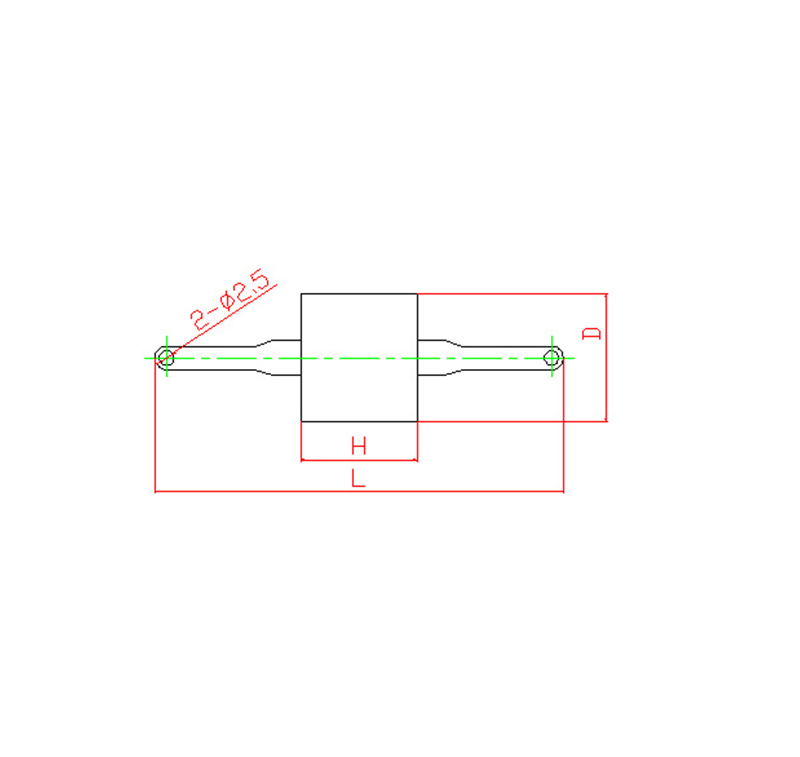

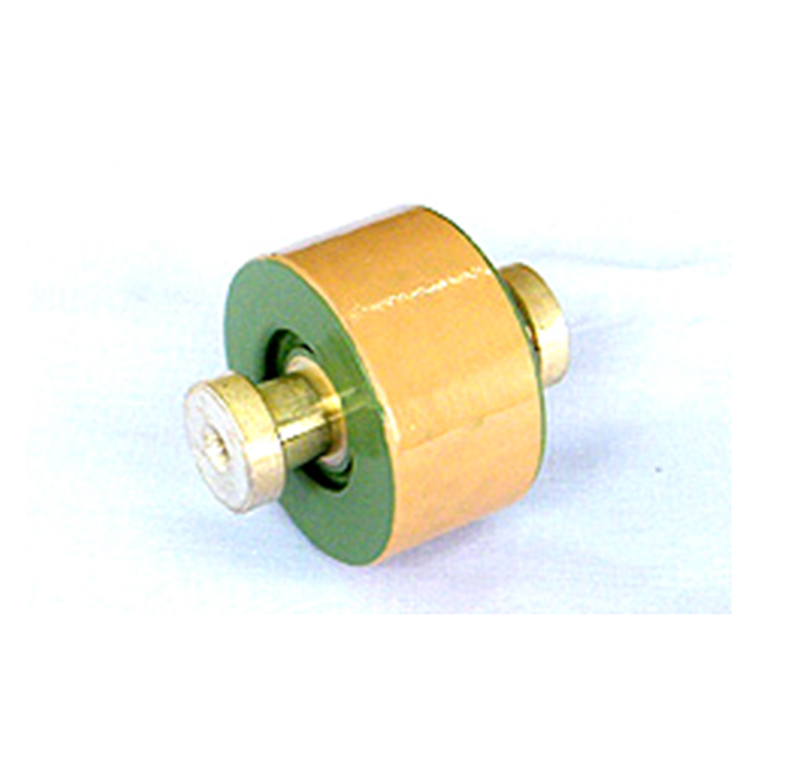

CCG61 drum-shaped high power ceramic capacitor

Model

Nominal power capacity

Rated voltage(KV)

Reactive power

Current Maximum

Dimension(mm)

Temperature coefficient

(PF)

DC

HF(RMS)

(KVA)

(A)

D

H

L

(PPM/℃ )

CCG61-1

15

5

4

3

1.5

21

15

90

-750

18

89

22

88

27

87

33

86

39

85

47

84

56

83

68

83

CCG61-2

39

8

6

5

2

34

19

92

47

91

56

90

CCG61-3

27

10

8

10

3

34

21

94

33

93

CCG61-4

22

10

8

15

5

37

25

95
