Electron tube    CTK12-1
The electron tube CTK12-1 is a water cooled, ceramic-metal, hign-mu amplifier factor triode, containing a thoriated tungsten carbide cathode. The rated plate dissipation is 10kW, and the highest output power is 33kW.It is designed for mainly used in RF amplifier in Class B and industrial Power Amplifier in Class C or Oscillator.

Overview

GENERAL CHARACTERISTICS

Electronics

Filament Voltage

5.8 V

Filament Current

145 A

Cold-Impedance

0.005Ω

Interelectrode Capacitance

  Grid- Cathode

60 pF

  Grid- Plate

21 pF

  Cathode- Plate

0.2 pF

Amplification  Factor

200

Transconductance

65 mA/V

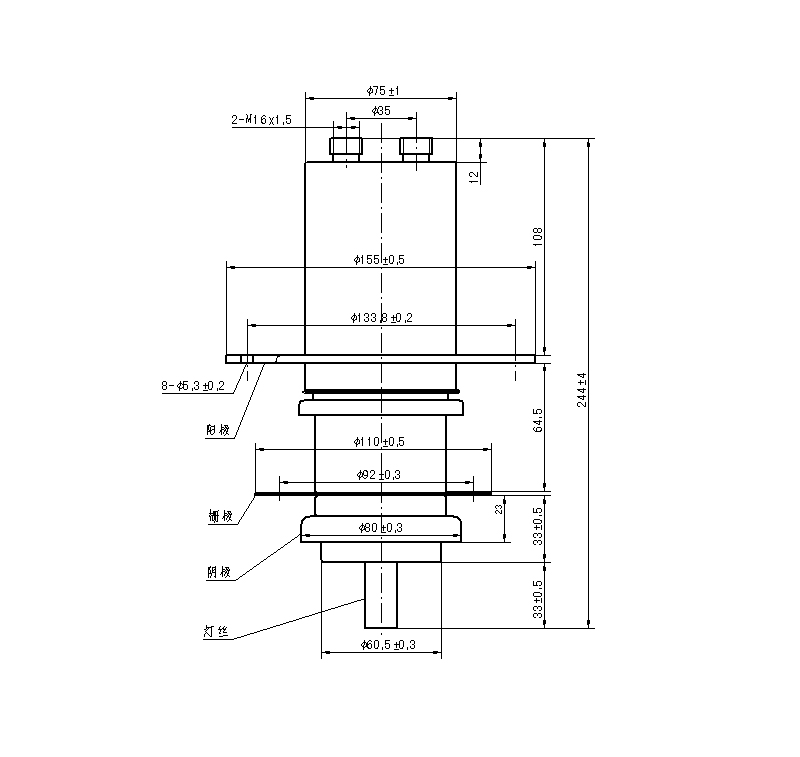

Machinery

Maximum Length

244 mm

Maximum Diameter

155 mm

Weight

3.1 kg

Operation Position

Vertical, base up or down
